PCB Stack-Up Engineering
A stack-up proposed or checked against your targets, with material options and open questions listed before quotation.
From targets to a buildable construction
Share your layer count, finished thickness, copper weights, impedance targets and any material constraints. Engineering proposes a stack-up or checks yours, and lists material options and open questions.
Stack-ups are project-specific: a construction approved for one design is not reused for another without review.
- Layer count and finished thickness
- Copper weight by layer
- Impedance targets
- Material constraints and hybrid options
Stack-up examples

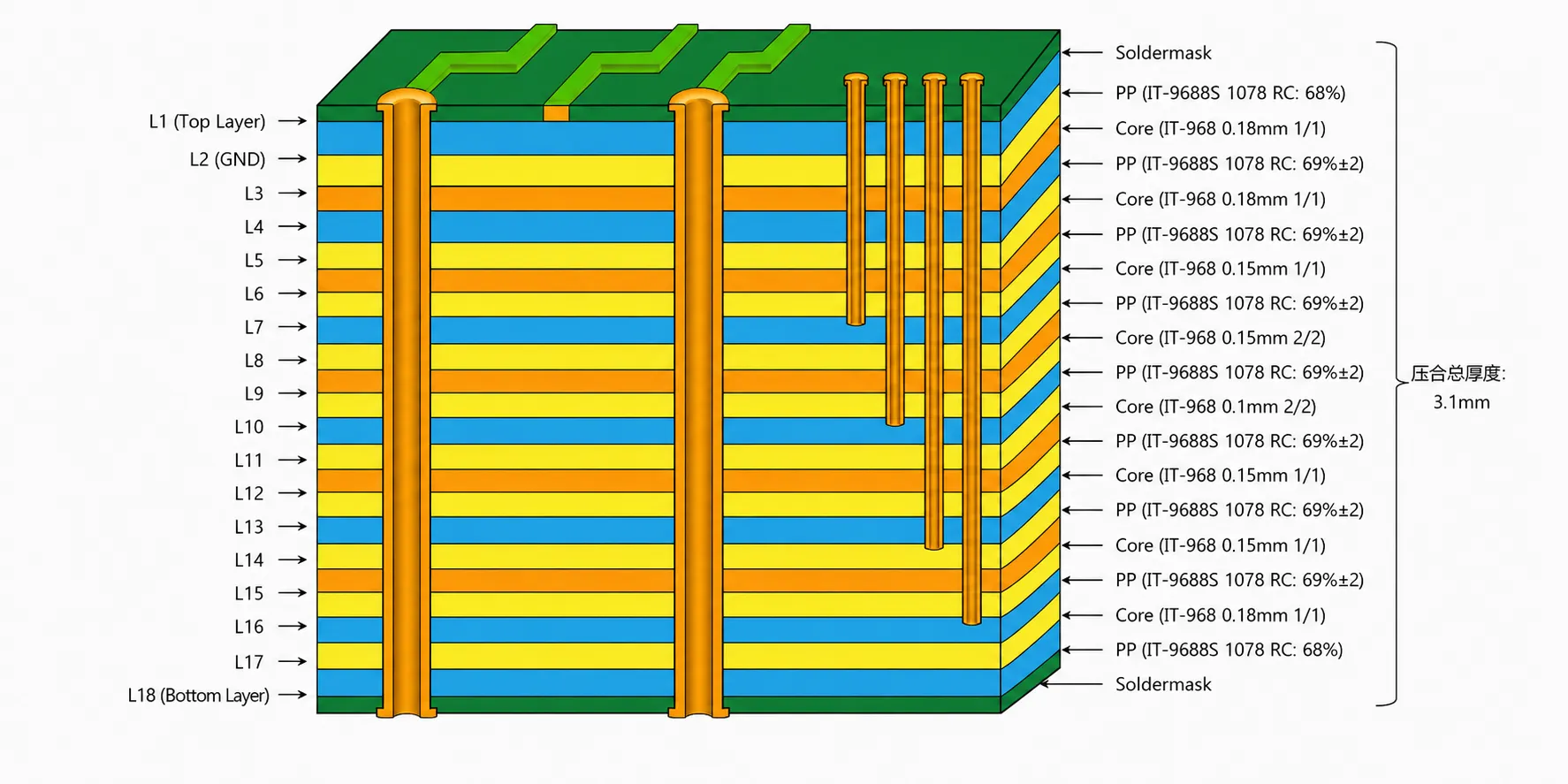

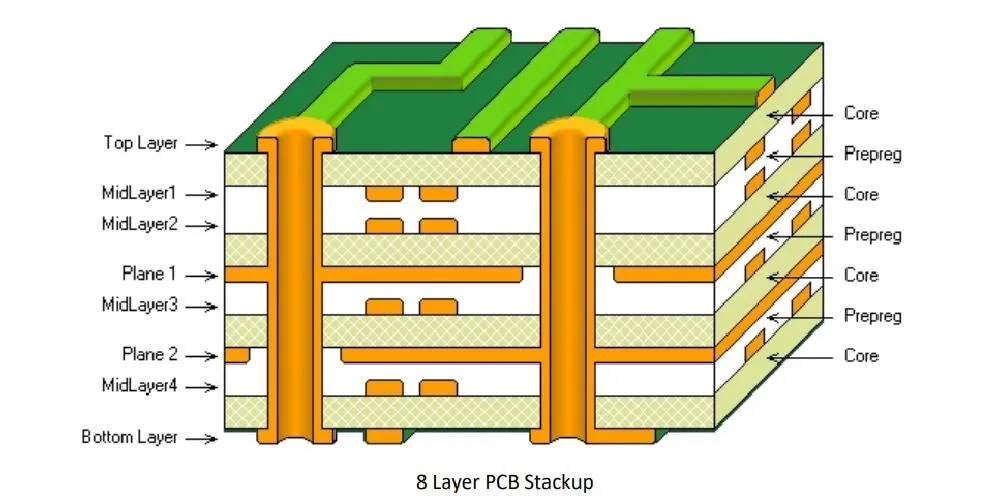

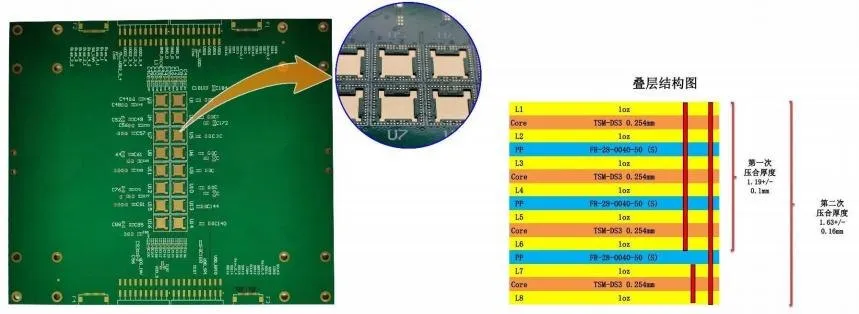

Constructions from the ShinePCB company presentation.
Inputs and outputs
| Inputs | Outputs |
|---|---|
| Layer count | Proposed stack-up |
| Finished thickness | Material options |
| Copper weight | Engineering questions |
| Impedance targets | Geometry proposal (with impedance engineering) |
| Material constraints | Notes on lamination cycles and cost impact |
Stack-up FAQs
Can you check my stack-up?
Yes. Send your proposed stack-up and targets for review.
Can you mix materials in one stack-up?
Hybrid stack-ups are reviewed per project. We confirm compatibility and processing before quotation.
